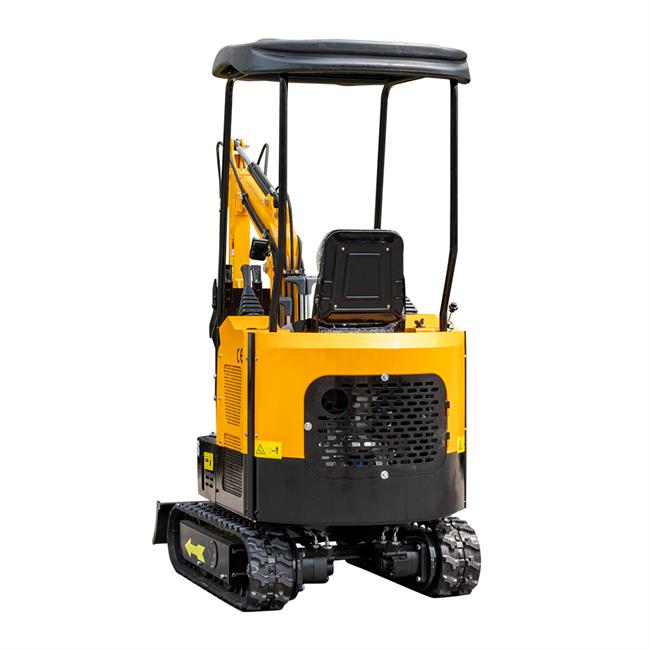

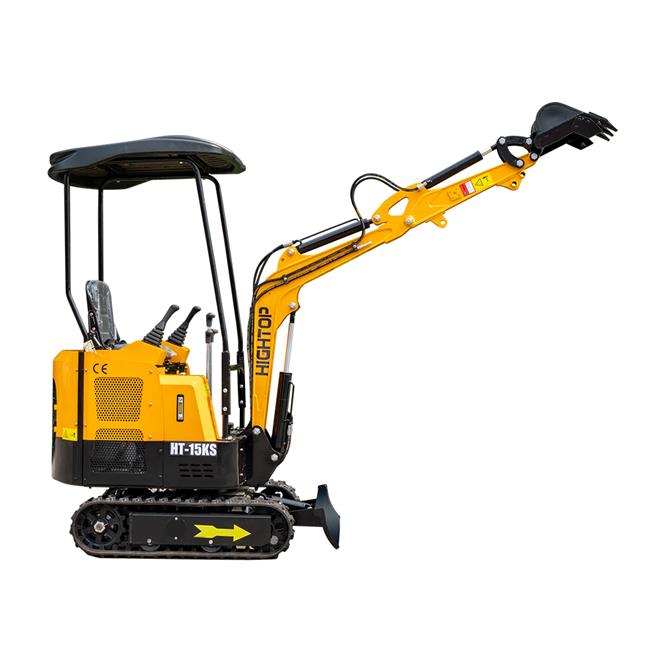

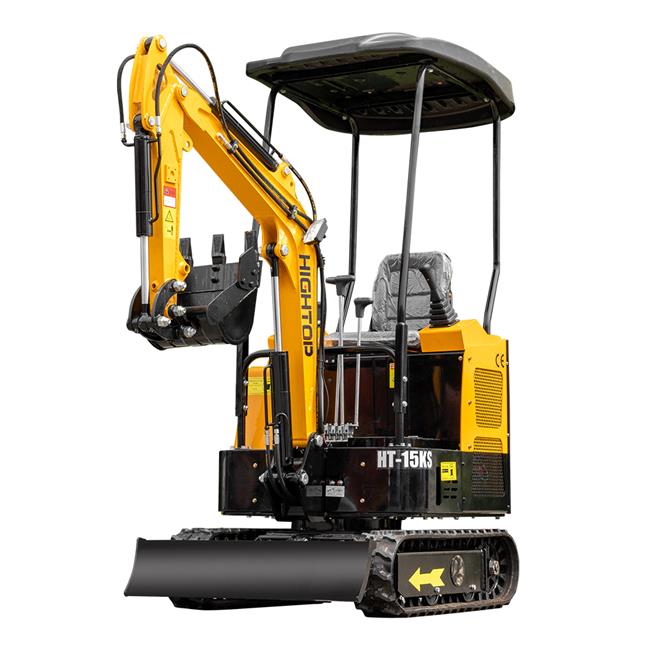

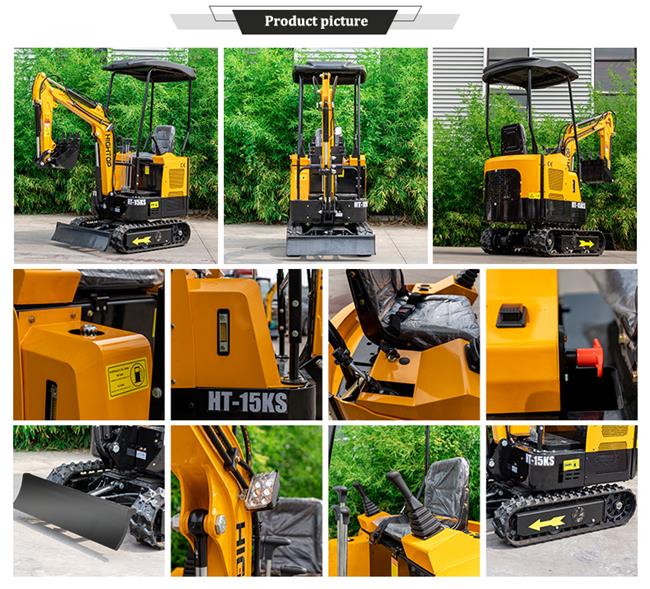

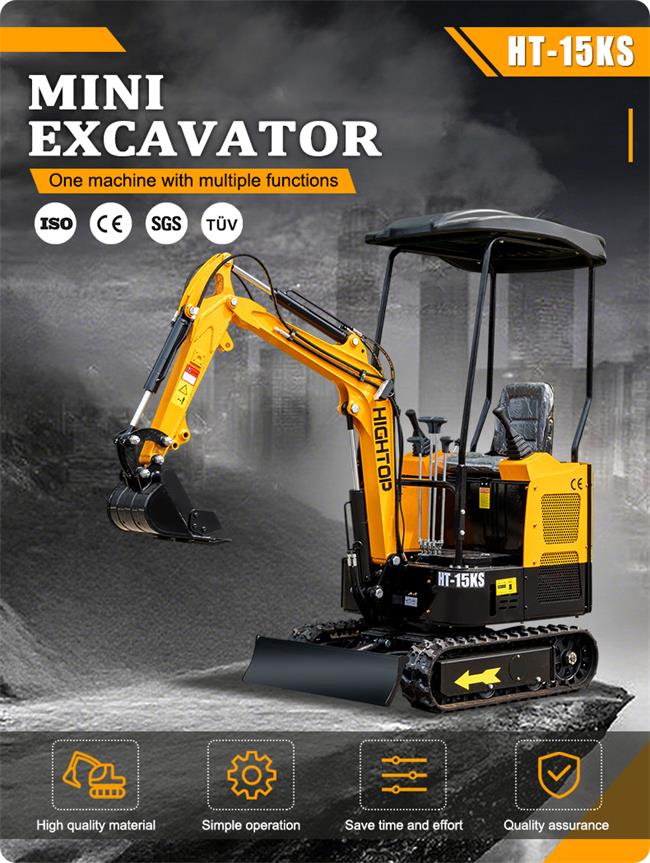

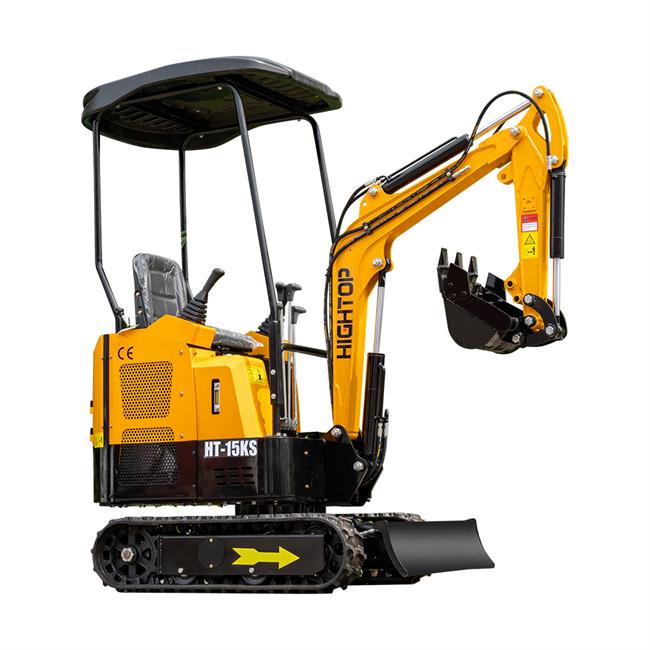

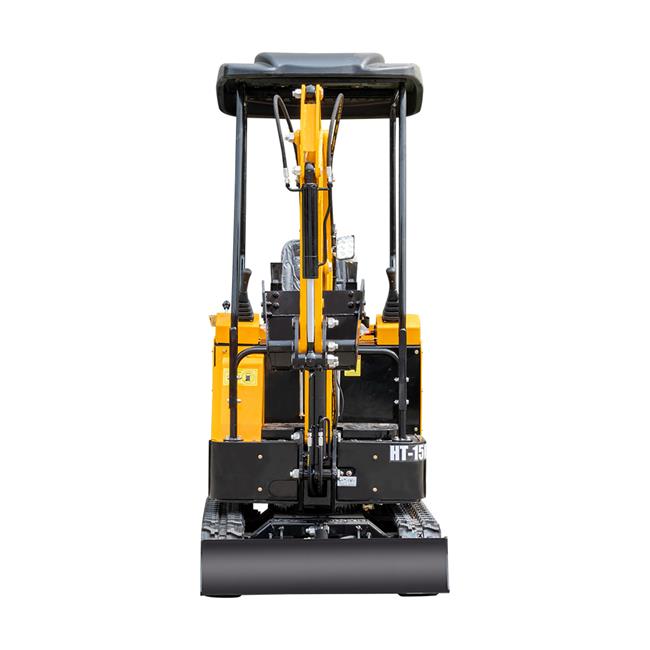

Mini Excavator HT15KS

The HT15KS mini excavator is an engineering powerhouse combining compact dimensions with practical performance, its specifications highlighting its unique advantages for working in confined spaces.

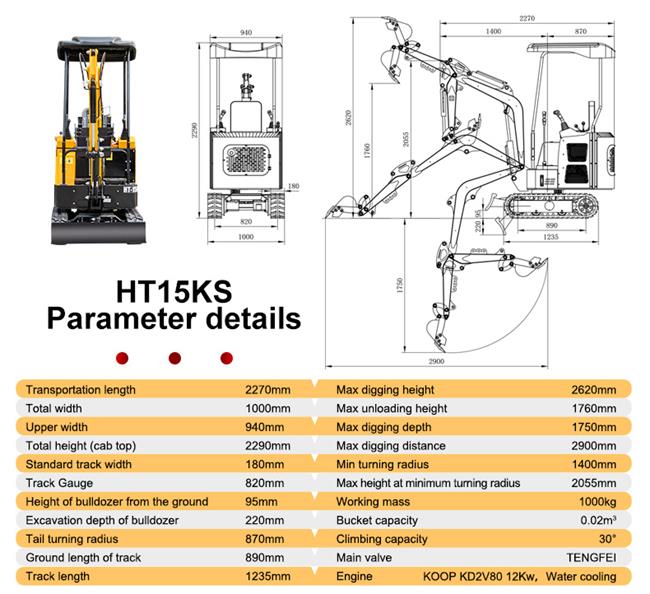

In terms of overall dimensions, its transport length measures just 2270mm, with a total width of 1000mm, upper width of 940mm, and total height (to cab roof) of 2290mm. This compact profile enables effortless manoeuvring through confined sites. Standard track plate width is 180mm, with a track gauge of 820mm, ground contact length of 890mm, and overall track length of 1235mm. Combined with a 30-degree climbing ability, this ensures stable operation across diverse terrains. With a dozer blade clearance height of 95mm, a digging depth of 220mm, and a tail swing radius of 870mm, its manoeuvrability in confined spaces is further enhanced.

In terms of operational reach, this excavator excels. With a maximum digging height of 2620mm and maximum dumping height of 1760mm, it accommodates diverse elevation requirements. Its maximum digging depth of 1750mm and maximum digging reach of 2900mm enable thorough handling of excavation tasks. The minimum swing radius of 1400mm and maximum height of 2055mm at this radius facilitate effortless manoeuvring in confined spaces.

Performance specifications include an operating weight of 1000kg and a bucket capacity of 0.02m³. Featuring a backhoe attachment configuration, it is well-suited for small-scale earthmoving operations and similar applications.

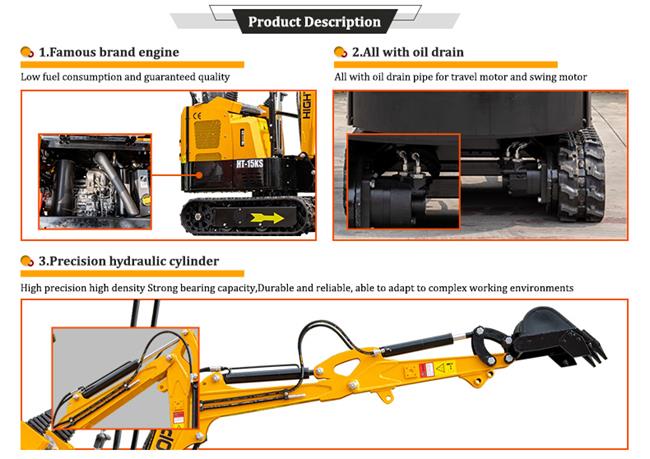

Key components utilise reliable products: the Kobelco KD2V80 engine and Tengfei main valve ensure robust, stable operation. Whether for small-scale construction projects, garden renovations, or agricultural work, the HT15KS mini excavator proves a capable assistant through its agile and efficient performance.
