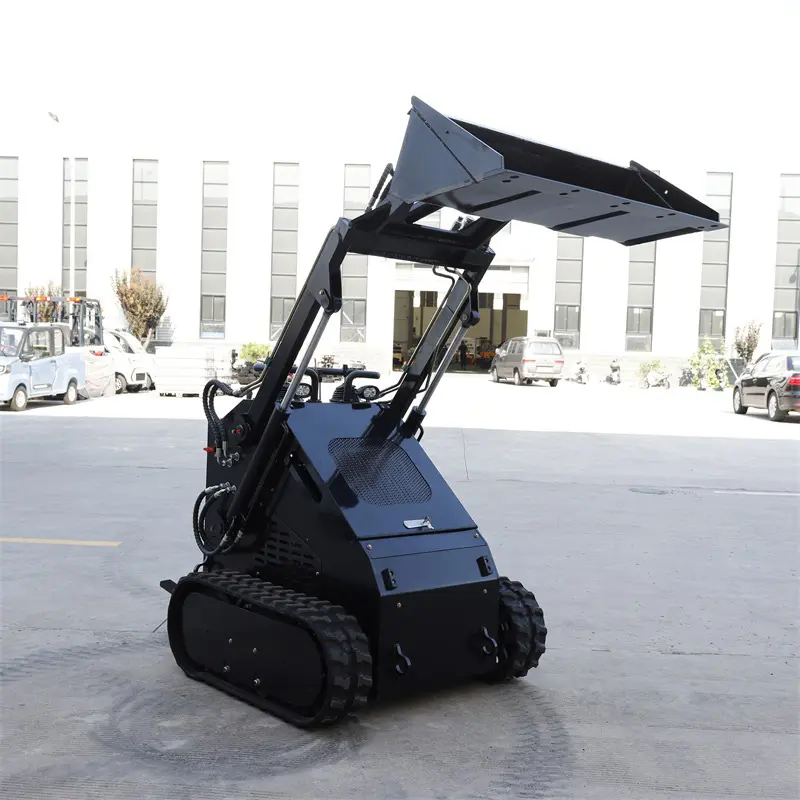

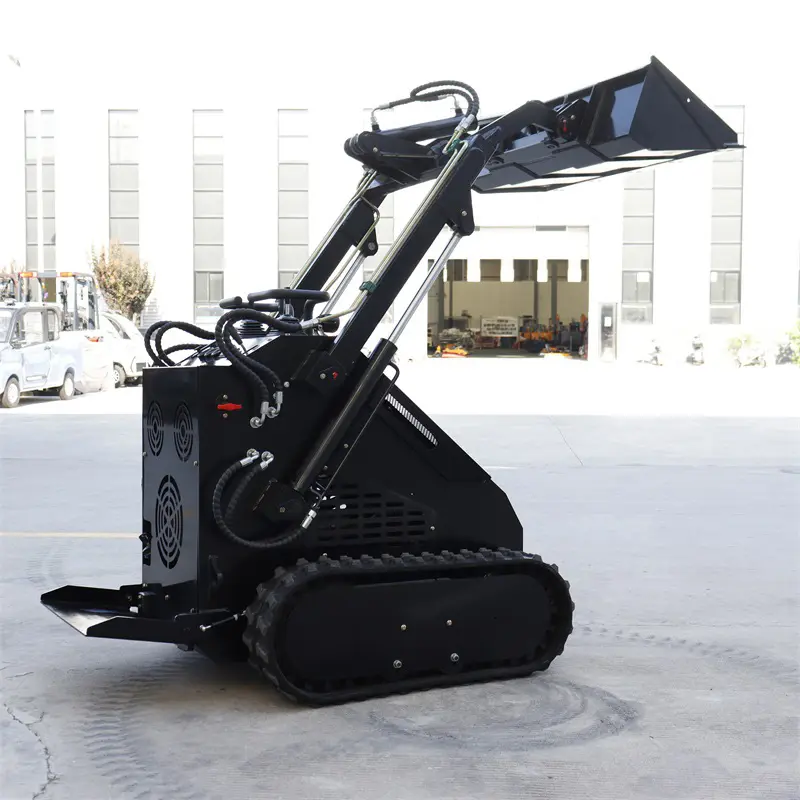

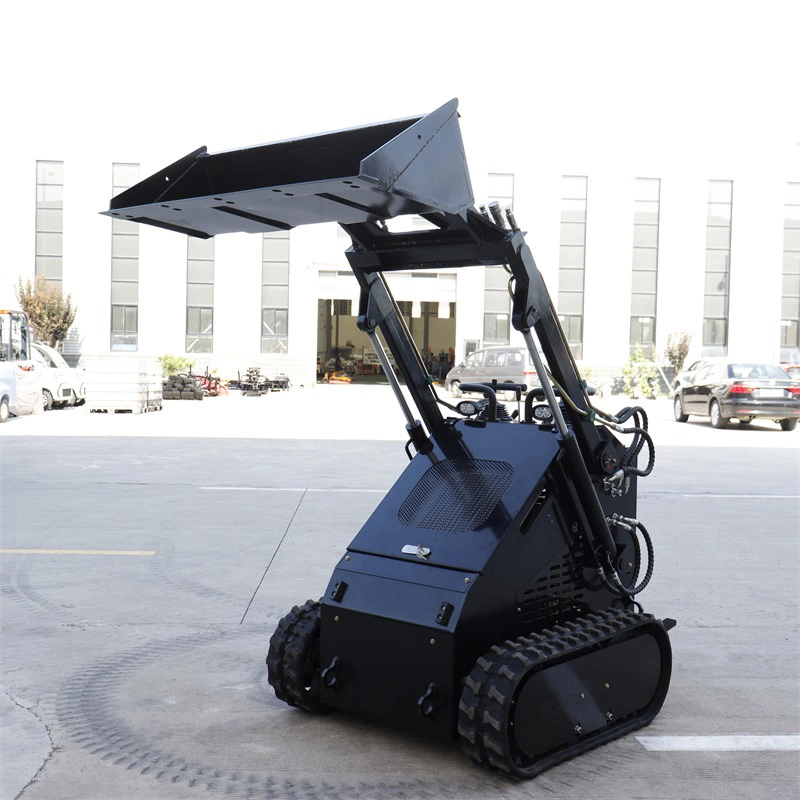

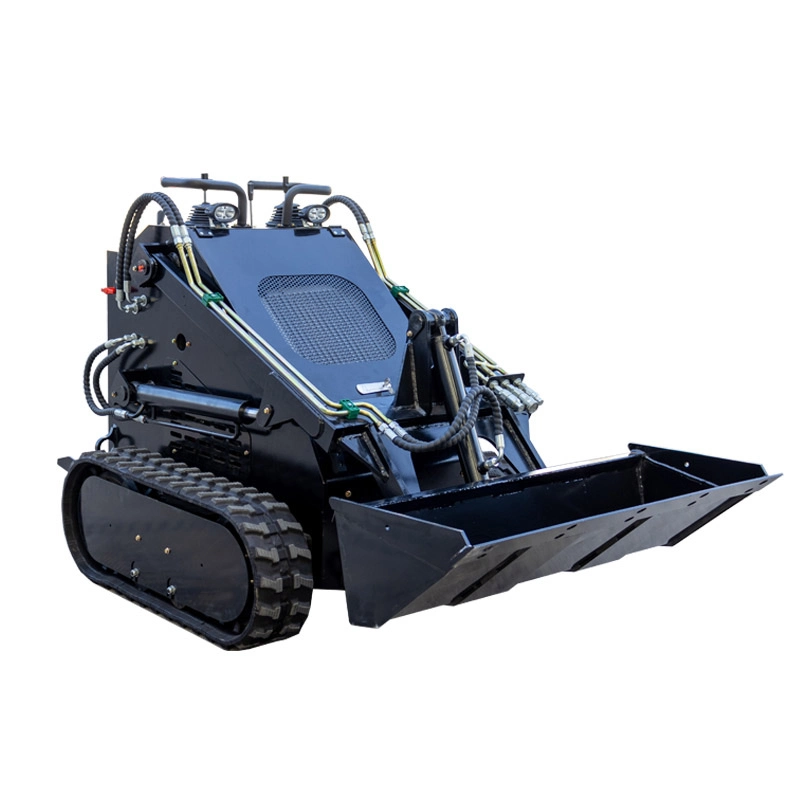

Small Crawler Skid Steer Loader
The HT380mini skid steer is equipped with a Briggs & Stratton engine for high load capacity. The dual joystick control is easy to operate, and the machine is multi-purpose, allowing you to replace various attachments such as de-icer, snow pusher, sweeper, hedge trimmer and so on.
Feature:
1. Famous Brand Engines Outstanding quality.
Rating Horsepower: 23hp,Kubota® diesel engine .
Engine brand : Briggs & Stratton， RATO, LONCIN Gasoline engines and Kubota diesel engine, Kholer.
World Top Powerful and Reliable Kubota® diesel engine provides exceptional power.
2. Imported Motors
Optimized hydraulics deliver the smoothest ride in the industry, allowing operators to stay comfortable and productive for long hours on the job.
3. Multifunctional equipment
The machine is equipped with an advanced attachment locking system for simple and safe connection Italian brand FASTER quick coupling, which can quickly connect several accessories to achieve different jobs, one machine is multi-purpose, with forklifts, excavators, trenchers, augers , cultivators, sweepers, snow blowers, excavators, drilling machines, crushers have the same functions.
4. Flexible convenient operation
Ergonomic operator's station comes standard with dual-level ground drive controls, with an optional joystick,allowing the operator to control each track independently for improved maintenance an mobility on difficult jobsite conditions.
Product Details:
1. Multi-function operation panel.
2. Standard quick-change connector,can be connected to a variety of attachments.
3. Intelligent throttle control system,Achieve linear control of the throttle.
4. Upgraded and thickened track，anti-skid and durable.
APPLICATIONS:
Ergonomic operator's station comes standard with dual-level ground drive controls, with an optional joystick,allowing the operator to control each track independently for improved maintenance an mobility on difficult jobsite conditions.
Main performance parameter of HTS380 Crawler Skid Steer Loader :
Model:HTS380 | |
Max working height | 2115 mm |
Max pin height | 1856 mm |
Max dump height | 1460 mm |
The highest point discharge distance | 388 mm |
Bucket swing angle | 55° |
Bucket unloading angle | 30° |
Opening-closing angle | 25° |
Angle of departure | 8° |
Total height | 1205 mm |
The height from the ground | 90 mm |
Wheelbase | 636 mm |
No bucket length | 1752 mm |
Total width | 1033 mm |
Bucket width | 980 mm |
Total length(with bucket) | 2206 mm |
Turning radius | 1307 mm |
Main performance parameters:
Model:HTS380 | |||||
Engine | Rated power | 21HP/23HP | |||
Rotating speed（rpm） | 3600 | ||||
Noise（Db） | ≤95 | ||||
Hydraulic System | Hydraulic pressure（Mpa） | 17 | |||
Cycle time（s） | Raise | Dump | Lower | ||
4.27 | 1.34 | 3.31 | |||
Performance parameters | Metric | inch | |||
Load weight (kg) | 200 Kg | 441 Lb | |||
Bucket capacity | 0.15 m3 | 5.33 ft3 | |||
Max lifting power | 375 Kg | 827 Lb | |||
speed | 0-5.5 Km/h | 0-3.4 mlie/h | |||
Operating weight |
890kg
|
1958lb
| |||
Tire type | Chevron tire | 18*6.5-8 | |||
