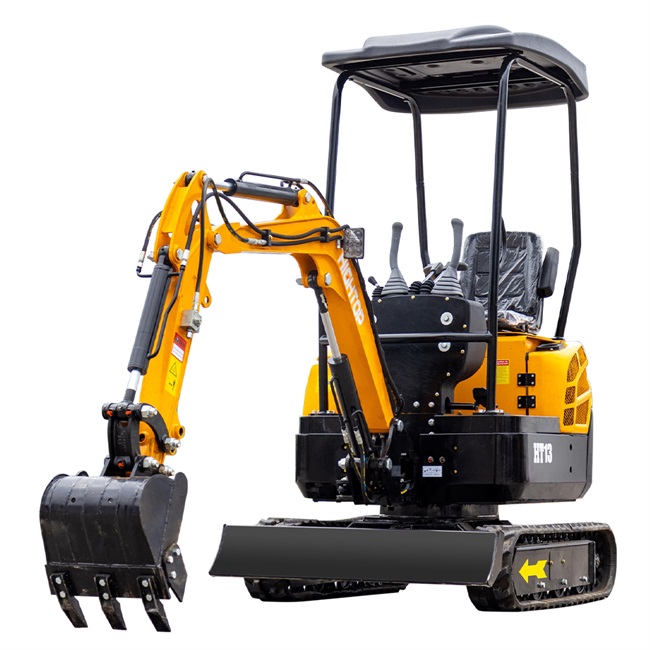

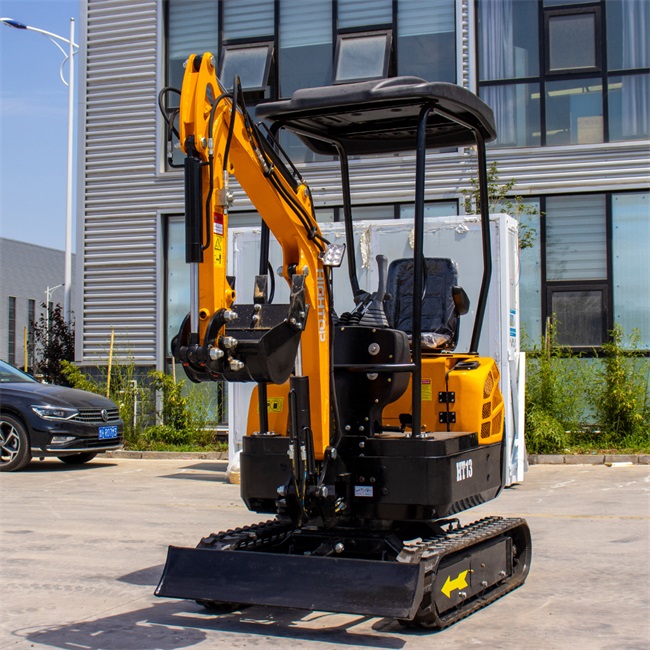

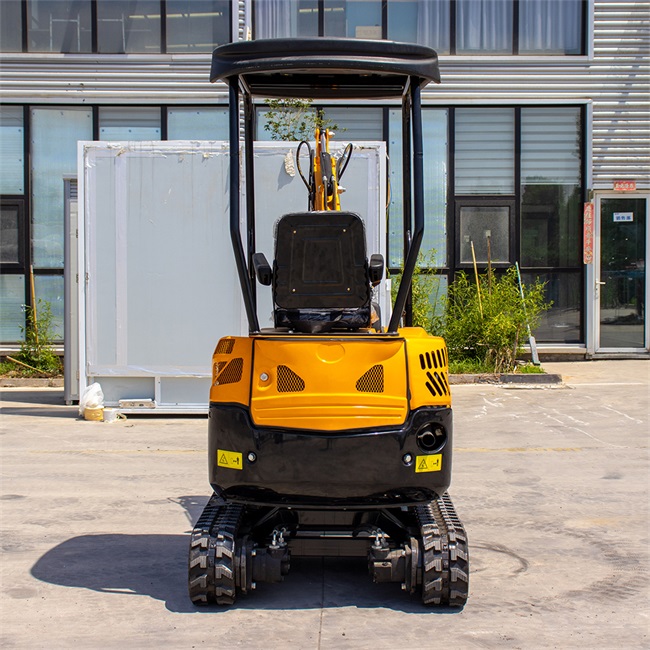

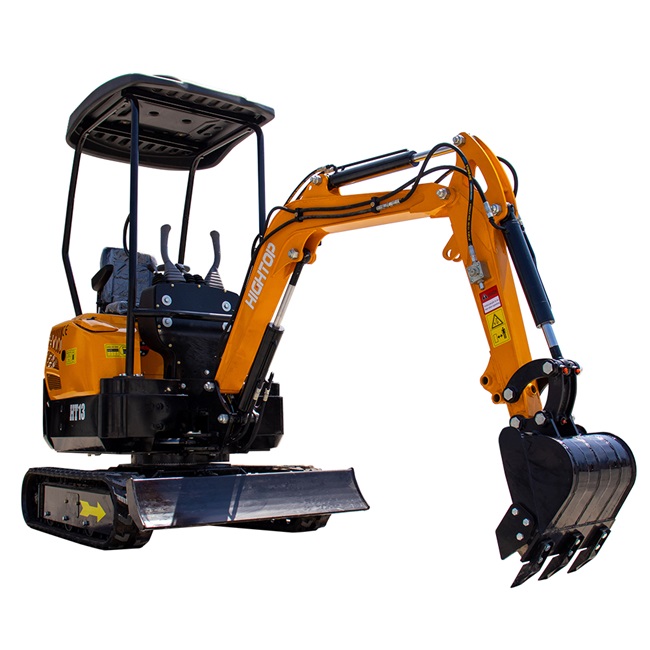

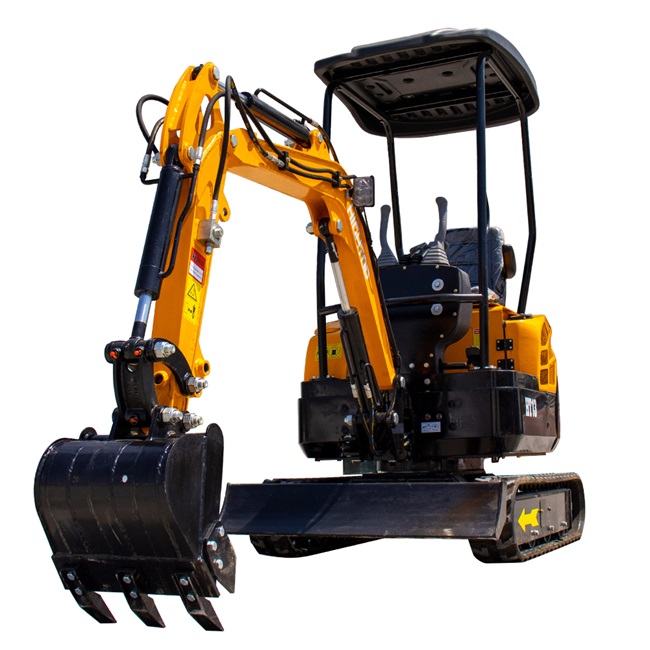

HT13 Mini Garden Excavator
For Consumers:
"Our Excavator,Skid loader offer affordability, customizability, and a diverse selection of models, whether model,to perfectly match your needs."
For Suppliers:
"Our excavator,skid loader redefine industry standards with innovative features, durability, and exceptional support. Maximize profitability with competitive pricing and lucrative incentives. Additionally, we provide top-notch after-sales services,including equipment installation, commissioning, and maintenance, all aimed at safeguarding our customers' interests. Contact us to become a dealer partner and unlock boundless opportunities in the construction industry. " .
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.

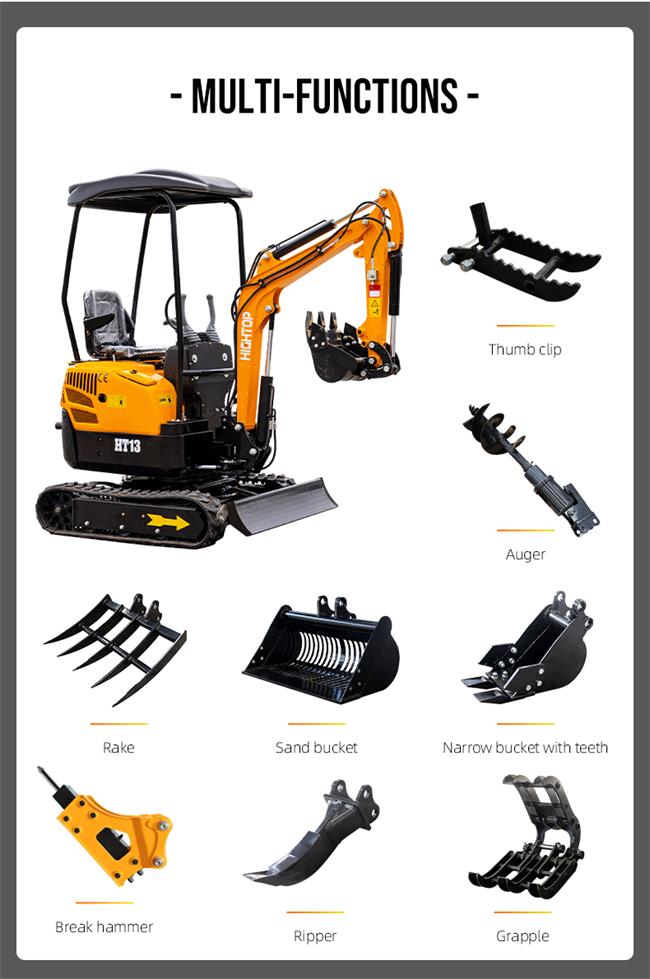

4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.

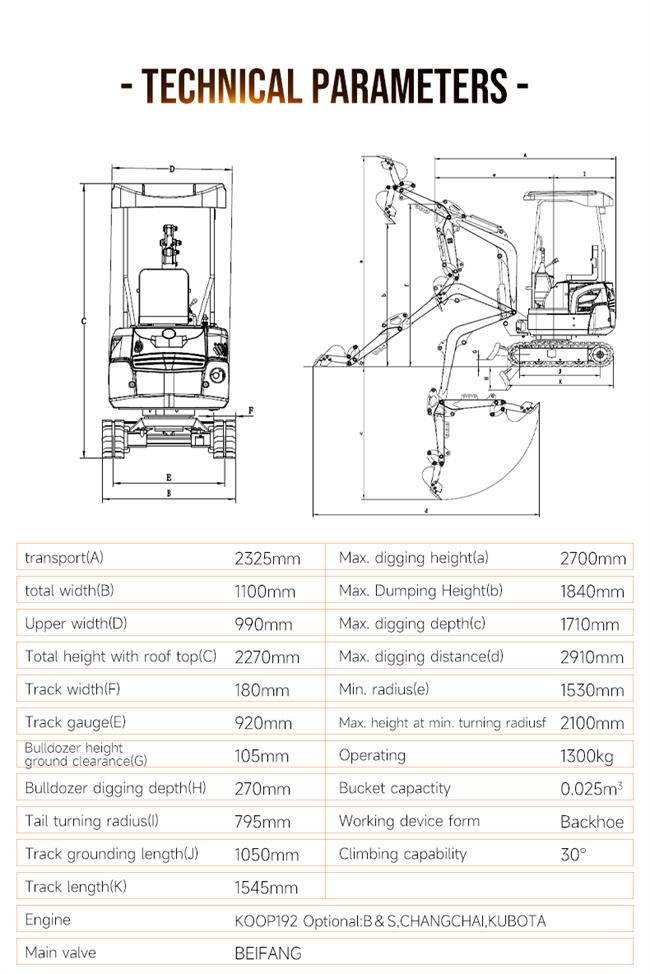

Technical Parameters of HT13Mini Excavator | |
Overall size (unit: mm) | |
Operating（KG) | 1300kg |
Bucket capactity (m³) | 0.025m³ |
Working device form | Backhoe |
Gradeability | 30° |
Engine | KOOP192/Briggs&Stratton, |
Power | 7KW/13.5hp |
Main valve | BEIFANG |
Operating Range | |
Max. digging height(a) | 2700 |
Max. Dumping Height(b) | 1840 |
Max. digging depth(c) | 1710 |
Max. digging distance(d) | 2910 |
Min. radius(e) | 1530 |
Max. height at min. turning radius(f) | 2100 |
Main Demensions | |
Transport(A) | 2325mm |
Total width(B) | 1100mm |
Upper width(D) | 990mm |
Total height with roof top(C) | 2270mm |
Track width(F) | 180mm |
Track gauge(E) | 920mm |
Bulldozer height ground clearance(G) | 105mm |
Bulldozer digging depth(H) | 270mm |
Tail turning radius(I) | 795mm |
Track grounding length(J) | 1050mm |
Crawler Length (K) | 1545mm |
